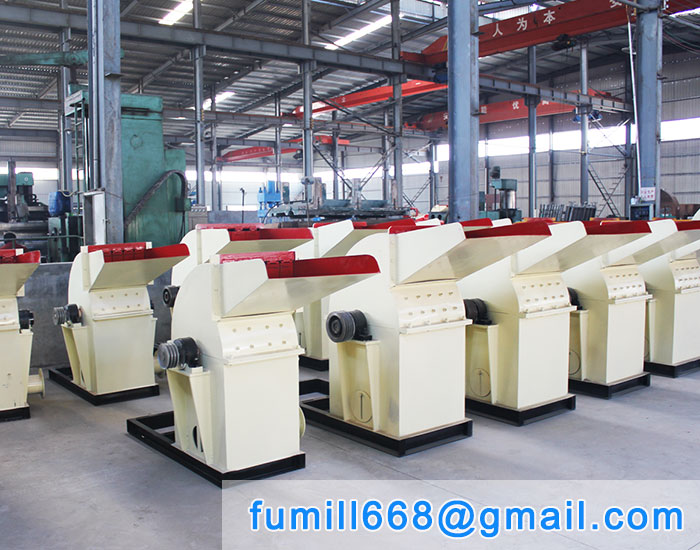

Wood Crusher

Introduction :
Wood Crushers are used in a wide variety of applications from simple volume reduction of wood waste prior to land-filling or composting, to preparing wood and other biomass for conversion to alternative fuels including pellets, cellulosic ethanol and other second generation bio-fuels. In addition, Wood Grinders are used to produce simple boiler fuel, animal bedding, mulch, and material to be used in the production of particleboard or other composite materials such as wood/plastic decking.
Wood Crusher features true dump & run operation. Fed vertically via a hopper positioned above the cutting chamber, you simply dump material into the hopper, push a button and walk away. Material can also be fed into the hopper continuously with an inclined conveyor.

Operating principle
Once material falls into the cutting chamber, a precision hydraulic "Process Ram" pushes material horizontally into a single shaft, "Torsion Point" cutting rotor. As the rotor turns, points on the cutting inserts mesh with, and cut material in between, corresponding teeth on a counter-knife bolted to the bed of the machine's cutting chamber. The rotor's cutting inserts are bolted onto holders welded into valleys in the rotor, allowing them to be quickly & easily rotated to each of the 4 cutting points before needing replacement.
Features
The screens are offered with a variety of hole sizes from 3/8" to 3", so it is quick & easy to change. These inexpensive screens allow you to not only control but also change output particle size as needed for specific applications. The Wood Crusher features a low speed, low noise and high torque design that maximizes throughput.
SPECIFICATION
