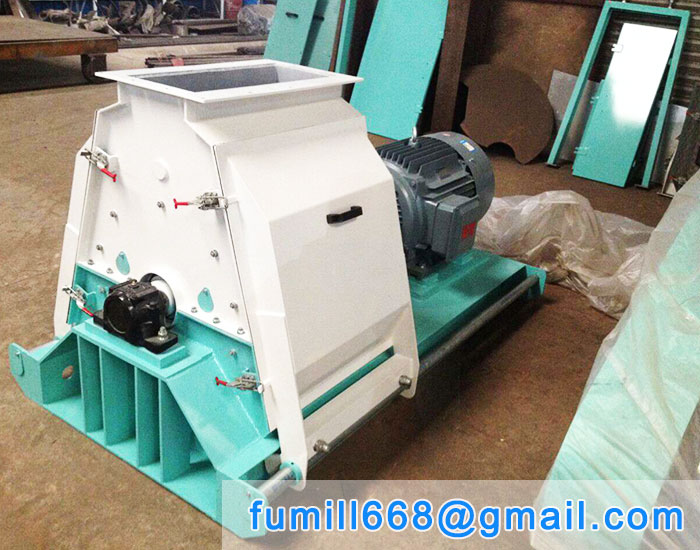

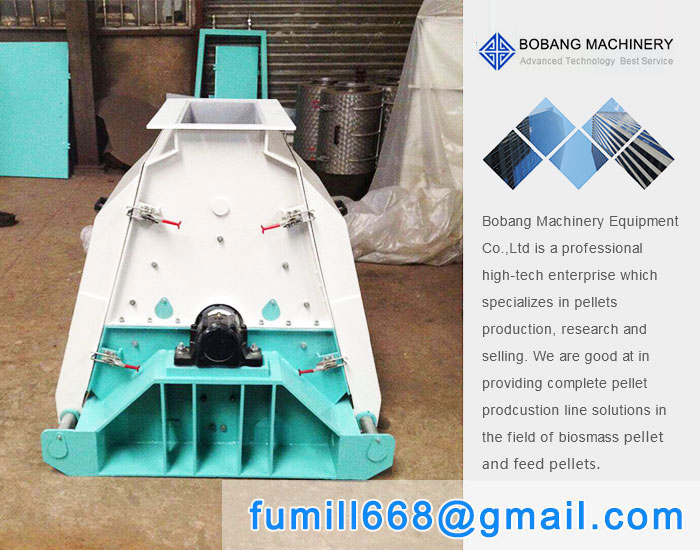

Multifunctional Wood Crusher

Introduction :
Multifunctional wood crusher is a special equipment of crushing timber. It is developed according to the need of industrial production by a period of research. Multifunctional wood crusher is used to crush the raw materials into powder in one process. During the working process, the multifunctional wood crusher combines both chipping and crushing in one machine to get the wood sawdust directly. The finally powder can reach to 2-5mm, no need to use other machines. It shows the advantages of easy operation, low noise, high capacity, energy consumption, high-quality finished products, easy maintenance, etc.

Raw Materials
It is used to process bamboo wood flour, nutshell, Chinese herbal medicine, bark, leaf, wheat bran, mushroom, sesame, rice shell, corn cob, stalk, starch, shelled shrimps of grain type, fish flour, seaweed, dehydrated vegetable, flavoring substance, Chinese date, paper, circuit board, plastic, chemically raw material, mica, carbon, volcanic clay, perlite, distilled grain, furfural, cake type, charcoal, activated carbon, cellulose, potato slag, tea, hair, bean pulp, cotton, cow skin, sheepskin, plant root, stalk, leaf, flower, fruit, all kinds of edible fungus, etc. and hundreds of difficult materials and is an ideal crusher in the industries of chemical engineering, building material, medicine, health care, breeding, food and mosquito-repellent incense, etc.
Application
Multifunctional wood crusher can process the wood, branches, bamboo into small pieces or sawdust, which is extensively applied in the material-preparing process of pulp paper or fiberboard making. Any types of Agro-forestry waste & forest waste, such as wood branch, wood logs, wood waste, wood chips, wood pieces, bamboo, panel, and corn comb, stalks, rice husk, coffee husk, coir pith, jute sticks, groundnut shells so on can be crushed by multifunctional wood crusher.
Features of Multifunctional wood crusher
1. Higher capacity and less wear costs.
2. Wide range of application suitability.
3. Easy to maintain, reduce the downtime and maintenance costs.
4. Stable running performance and easy operation.
5. Balanced run out rotation ensures best capacity.
SPECIFICATION DATE

MODEL POWER(Kw) FEED PORT SIZE(mm) BLADE QTY(片) HAMMER QTY CAPACITY(Kg/h) DIMENSION(mm) WEIGHT(t)
MDS-5 18.5-22 280x500 4 12 0.6-0.8 1500x650x850 0.75
MDS-6 30 300x600 4 18 0.8-1.5 1500x700x1000 1.2
MDS-7 37 320x700 6 24 1-2 1550x750x1050 1.5
MDS-9 55 320x900 8 30 2-3 2000x1100x1300 1.9
MDS-10 75+1.5 350x1000 8 36 3-4 2000x1600x1350 2.6
MDS-12 90+1.5 350x1000 9 48 4-5 2000x1900x1800 3.5
MDS-15 110+11 350x1200 12 60 5-6 2000x2300x2005 5.3
