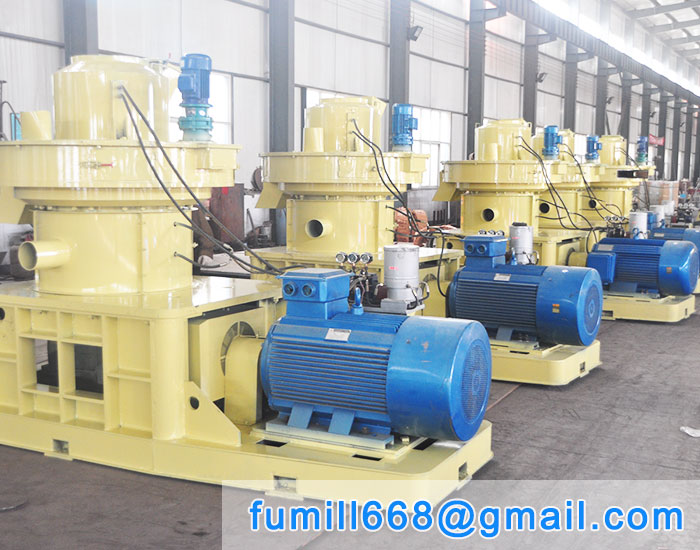

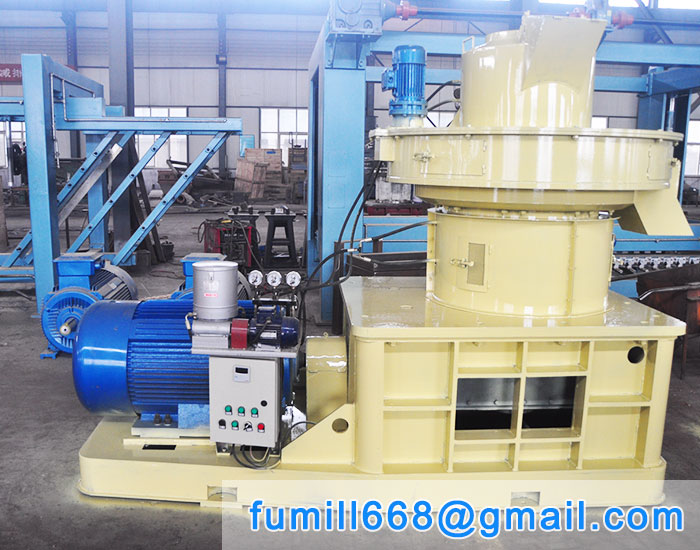

Biomass Pellet Mill

Introduction :
Biomass Pellet Machine ,this kinds of wood pellet machine specialized in pressing hard raw materials which lower adhesion power, hard wood sawdust, like oak, beech, rubber wood; all kinds of stalk, rice husk.
Biomass pellet machine efficient centrifugal type pellet machine, with high pressure, can make pellets from different pressure ratio material: wood sawdust, agricultural straw, rice husk, sunflower shell, coconut husk, palm fiber, oil palm trunk, bamboo, alfalfa, grass, hay or other biomass. During pelletizing, no need any additives, DIN standard can be reached easily.

Application

Characteristics
1. Feeding vertically and directly to pelletizing room.
2. Die static, rollers rotating, materials centrifugal, evenly distributed around.
3. Double-layer dies, up and down dual use, high capacity and energy saving.
4. Ring die, vertical structure, conducive to the pelletizing room cooling.
5. Independent output device, ensure formation rate of pellets.
6. Independent lubrication system, bring precise & automatic lubrication to bearings.
7. Feeding systems are equipped with inverter which can bring step less adjustable feeding speed.

SPECIFICATION

MODEL	POWER（Kw)	PLEET SIZE（mm)	RING DIE INNOR DIA（mm)	CAPACITY（t/h)	DIMENSION（L x H x W mm)	WEIGHT（t)
MLK450	55	4-12	450	0.3-1	2200x900x1600	3
MLK550	75	4-12	550	0.7-1	2300x1000x1780	5
MLK560	90	4-12	560	1-1.5	2600x1300x2300	6.3
MLK680	160	4-12	680	2-2.5	3200x1400x2400	8.5
MLK850	220	4-12	220	3-4	3750x1650x3250	12.6
MLK880	315	4-12	315	4-5	4300x1900x3600	14.5
